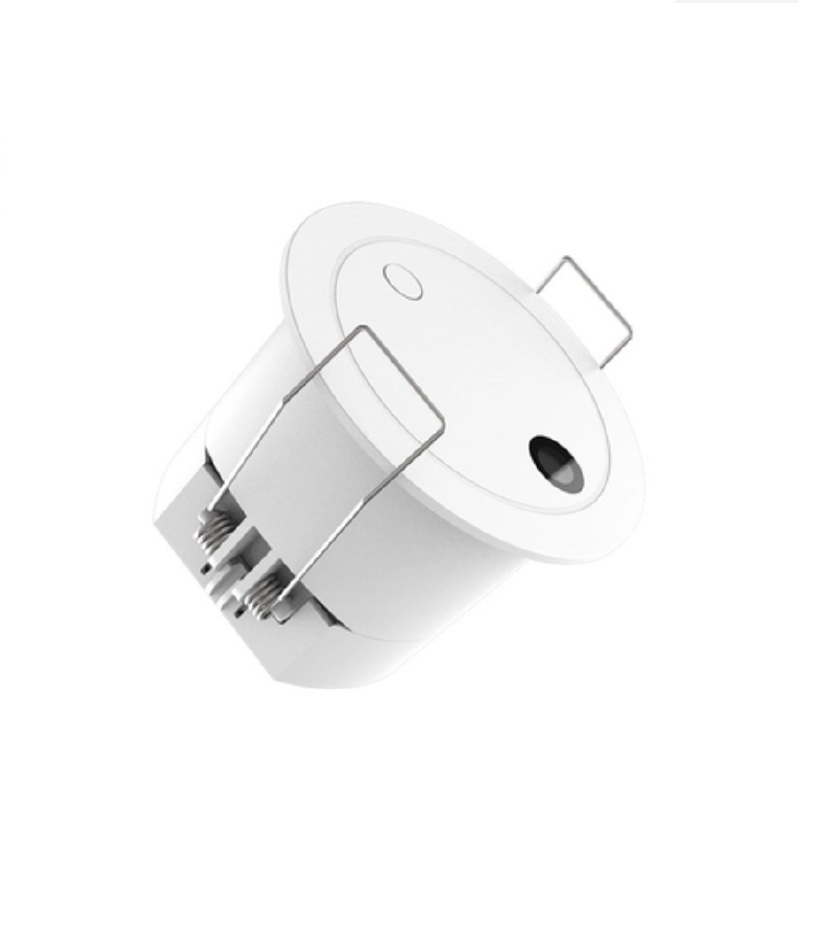

Lifora Smart Presence Sensor

Lifora Smart Presence Sensor

Aurealife 24GHz radar sensor based on patented orthogonal antenna. Its antenna has high gain and wide detection range. Combined with unique software algorithm and FMCW modulation, it can accurately detect micro movements brought by human in almost all indoor spaces and provide fast and accurate front-end sensing input for smart home, smart hotel, smart office and other scenes.

* App Control
* Accurate Presence/Absence Output
* Daylight Sensor Available
* 24Ghz ISM Band
* Round radiation
* Flush mounting
* Sensor parameter adjustable
* Millimeter wave radar technology
* Low RF power output
* Not affected by temperature
* No harm to human health
* Breath Detections
* Switch Absence to Presence 0.5S
* Fire retardent Body

Description

  • Input Supply : 220-240Vac 50Hz/60Hz
  • Working Power : ≤1W 230V AC
  • Protocol : Zigbee
  • Radar frequency : 24GHz-24.25GHz ISM band
  • Detection Area : APP setting: 0-4m(0.5m per tapping)
  • Hold Time : APP setting: 3-7200s
  • Finish : White
  • Working Temp : -20°C to 50°C

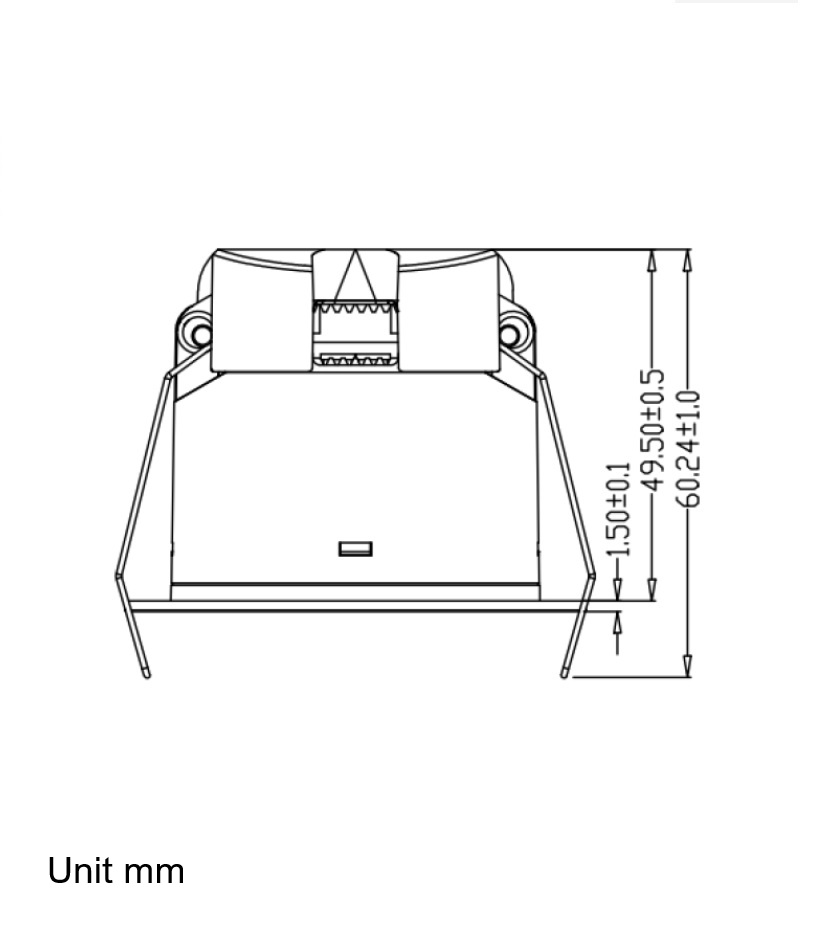

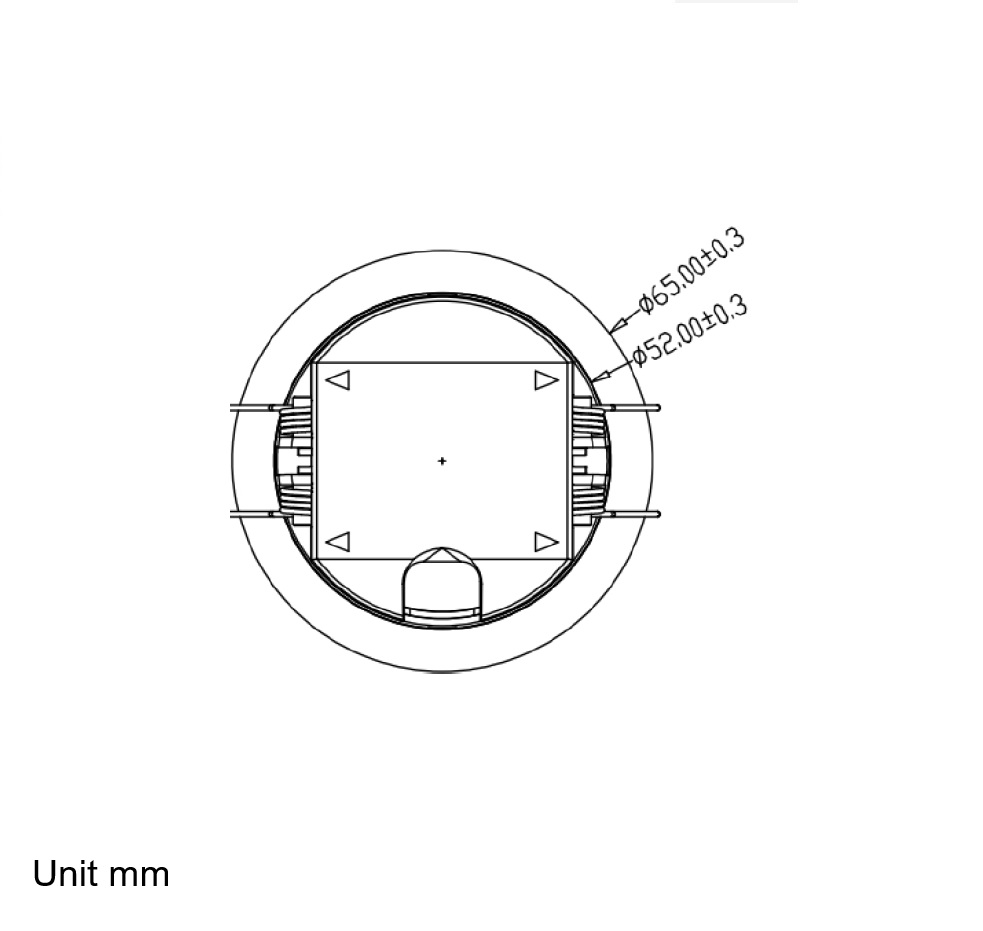

  • Size : φ65 x 49.5mm
  • Mounting height : 2.5 – 4.0m typical value : 3m
  • Detecting Angle : 120°
  • Drill hole : Φ55mm
  • IP Rating : IP20
  • Daylight sensor range : 0-1200Lux
  • Transmitting Power : 5mW Max
  • Ceiling Recessed/Surface mount Options Available
  • Aplication : Aurealife
